Features
1. 1/3 color CMOS image sensors
2. PAL/NTSC format
3. Pixel: 628*582, 510*492
4. The TV line: 420, 380
5. The angle of 92/120 degree
6. Work voltage: DC 12V
7. Horizontal resolution: 420 TV lines
8. Scanning System: 2:1 interlace
9. Gamma factor: 0.45
Specification:
| General |
| Display Resolution |
656 x 492 pixels |
| Video Output |
1.0 VP-P, 75 ohm |
| Operating Language |
English, Simplified Chinese, Traditional Chinese |
| Waterproof Level |
IP67, IP68 |
|
| Camera |
| Imaging Device |
OV7950, 1030 |
| Lens Angle |
170 Degrees, 135 Degrees |
| Image Sensor |
1/3 color CMOS |
| Mini Lumination |
0.1 lux (IR ON) |
| Shutter Speed |
1/60-1/20000s |
| Sensing Area |
4.08 mm x 3.12 mm |
|
| Environment |
| Working Temperature |
-20 – 75 Degree Celsius |
| Storage Temperature |
-40 – 85 Degree Celsius |
| Operating Humidity |
RH 95 Percent MAX |
| Storage Humidity |
RH 95 Percent MAX |
|
| Package Include |

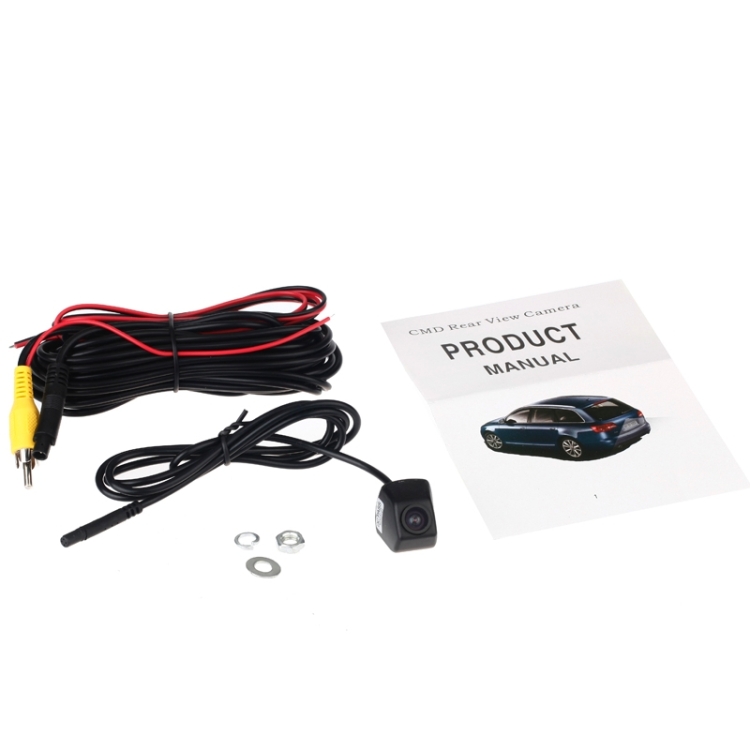

| Package Contents |
1 x User Manual

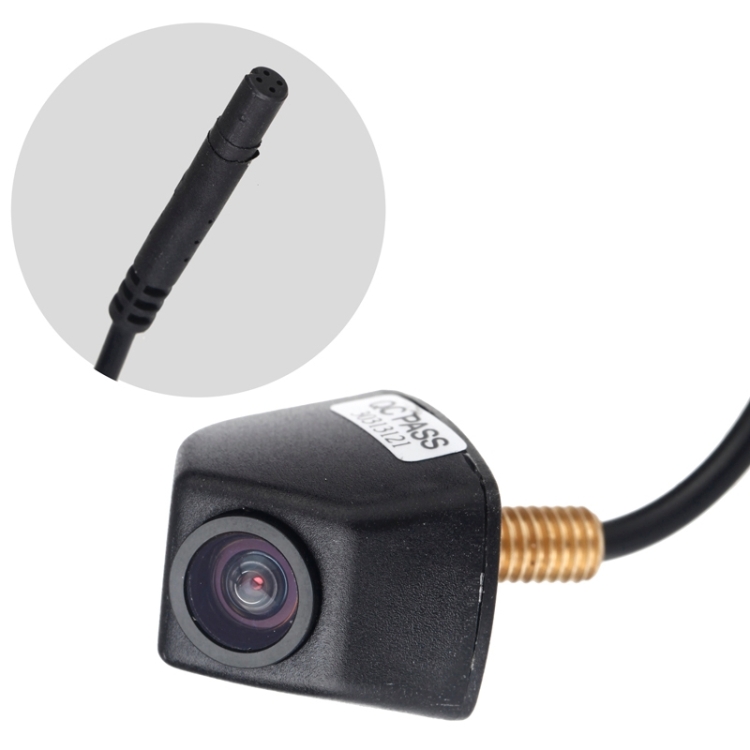

1 x Car Rearview Camera

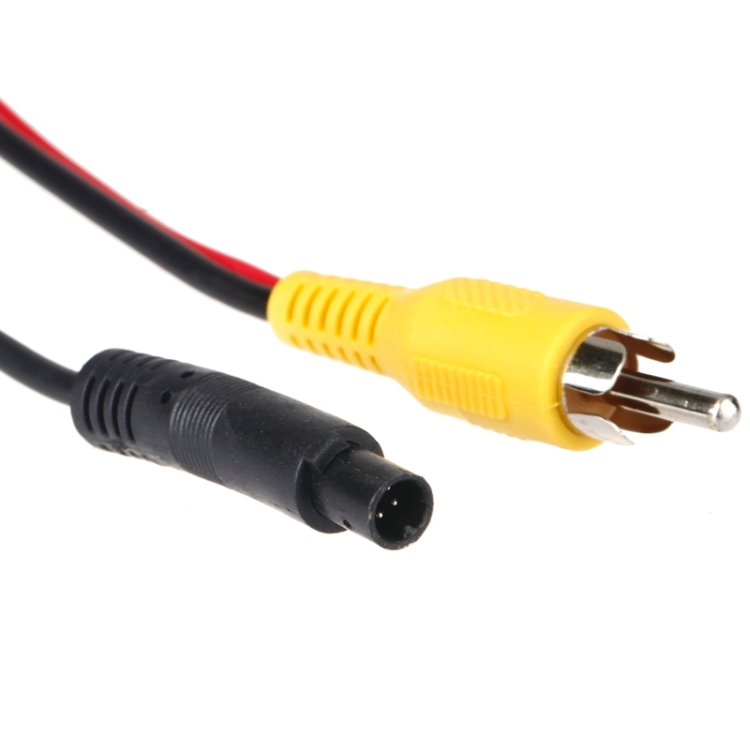

1 x Video Cable
1 x Power Cable |
|
| Package Weight |
| One Package Weight |
0.18kgs / 0.40lb |
| One Package Size |
13.5cm * 8.3cm * 5cm / 5.31inch * 3.27inch * 1.97inch |
| Carton Weight |
18.50kgs / 40.79lb |
| Carton Size |
46cm * 41cm * 54cm / 18.11inch * 16.14inch * 21.26inch |
| Loading Container |
20GP: 261 cartons * 100 pcs = 26100 pcs
40HQ: 607 cartons * 100 pcs = 60700 pcs |
|
